HVAC Service Valves
AC Pressure Relief Valves
Straight-Thru Pressure Relief Valve, 3/8 NPT X 1/2 SAE, 550 PSI, Discharge Capacity: 17.9

Skip to the end of the images gallery

Note: Image may not exactly match SKU and is only for representation.

Skip to the beginning of the images gallery

Superior HVACR

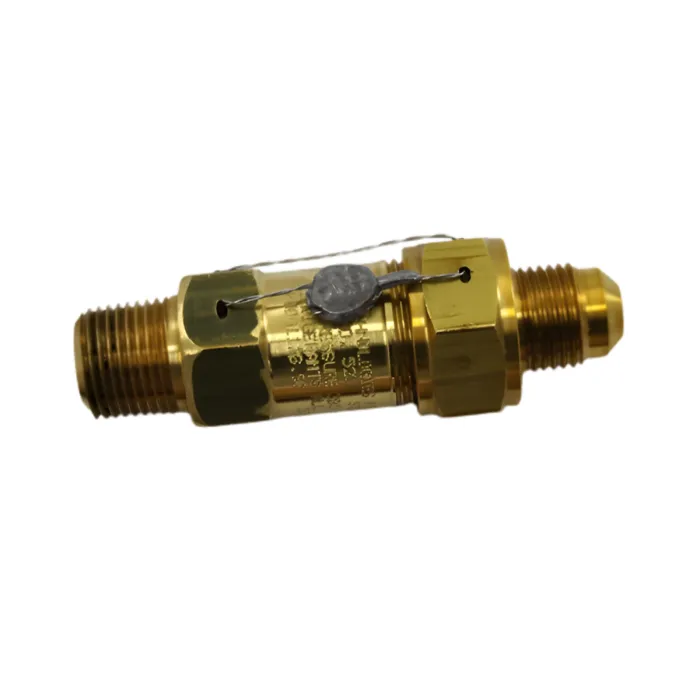

Straight-Thru Pressure Relief Valve, 3/8 NPT X 1/2 SAE, 550 PSI, Discharge Capacity: 17.9

Name: Straight-Thru Pressure Relief Valve, 3/8 NPT X 1/2 SAE, 550 PSI, Discharge Capacity: 17.9
Brand: Superior HVACR
SKU: 3015C-550
Price: 217.22 USD
Availability: InStock

SKU

3015C-550

Straight-Thru Pressure Relief Valve, 3/8 NPT X 1/2 SAE, 550 PSI, Body Construction: Brass, Seat Material: 100 % Teflon, Spring Material: stainless steel, Minimum Temperature: -40 degrees F, Maximum Temperature: 325 degrees F, Discharge Capacity: 17.9

Download Technical Sheet

Product Information

Pressure Relief Valve, Superior HVACR Products, Minimum setting: 150 PSIG, Body Construction: Brass, Seat Material: 100 % Teflon, Spring Material: stainless steel, Minimum Temperature: -40 degrees F, Maximum Temperature: 325 degrees F, Reseat: by 80% of set pressure, Discharge Capacity: 17.9
