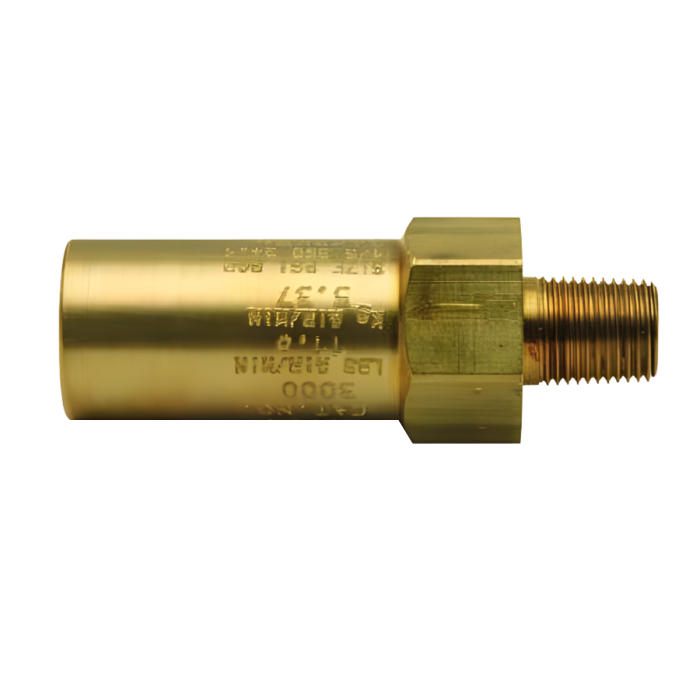

Atmospheric Pressure Relief Valve, 3/8 NPT, 650 PSI, 21.6 Discharge Capacity

Name: Atmospheric Pressure Relief Valve, 3/8 NPT, 650 PSI, 21.6 Discharge Capacity
Brand: Superior HVACR
SKU: 3002C-650
Price: 146.62 USD
Availability: InStock

SKU

3002C-650

Atmospheric Pressure Relief Valve, Superior HVACR Products, 3/8 NPT, 650 PSI, Body Construction: Brass, Seat Material: 100 % PTFE, Spring Material: stainless steel, Minimum Temperature: -40 degrees F, Maximum Temperature: 325 degrees F, Discharge Capacity: 21.6

Download Technical Sheet

Product Information

Atmospheric (No External Connection) Pressure Relief Valve, Superior HVACR Products, Minimum setting: 150 PSIG, Body Construction: Brass, Seat Material: 100 % PTFE, Spring Material: stainless steel, Minimum Temperature: -40 degrees F, Maximum Temperature: 325 degrees F, Reseat: by 80% of set pressure, Discharge Capacity: 21.6
