Home
HVAC Service Valves
AC Pressure Relief Valves
Atmospheric Pressure Relief Valve, 3/8 NPT, 235 PSI, Discharge Capacity: 8.1

Skip to the end of the images gallery

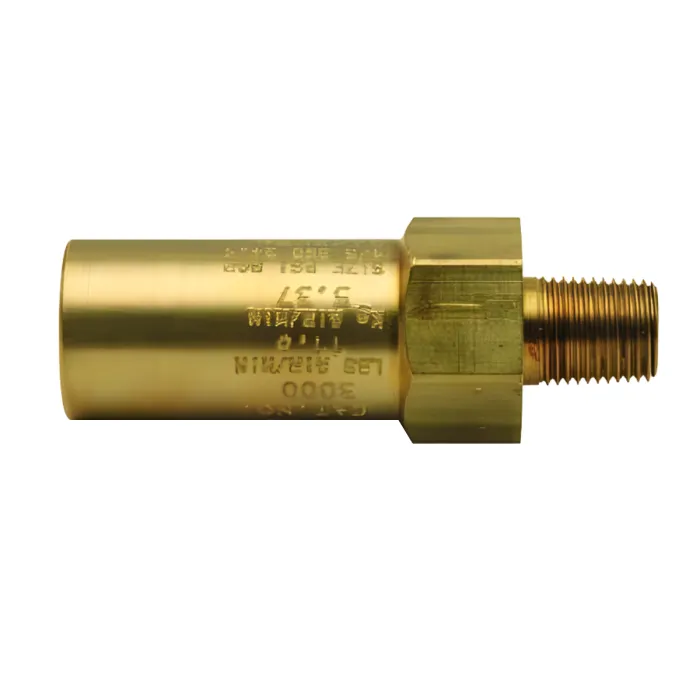

Note: Image may not exactly match SKU and is only for representation.

Skip to the beginning of the images gallery

Superior HVACR

Atmospheric Pressure Relief Valve, 3/8 NPT, 235 PSI, Discharge Capacity: 8.1

Name: Atmospheric Pressure Relief Valve, 3/8 NPT, 235 PSI, Discharge Capacity: 8.1
Brand: Superior HVACR
SKU: 3002-235
Price: 90.81 USD
Availability: InStock

SKU

3002-235

Atmospheric Pressure Relief Valve, Superior HVACR Products, 3/8 NPT, 235 PSI, Body Construction: Brass, Seat Material: 100 % PTFE, Spring Material: stainless steel, Minimum Temperature: -40 degrees F, Maximum Temperature: 325 degrees F, Discharge Capacity: 8.1

Download Technical Sheet

Product Information

Atmospheric (No External Connection) Pressure Relief Valve, Superior HVACR Products, Minimum setting: 150 PSIG, Body Construction: Brass, Seat Material: 100 % PTFE, Spring Material: stainless steel, Minimum Temperature: -40 degrees F, Maximum Temperature: 325 degrees F, Reseat: by 80% of set pressure, Discharge Capacity: 8.1
