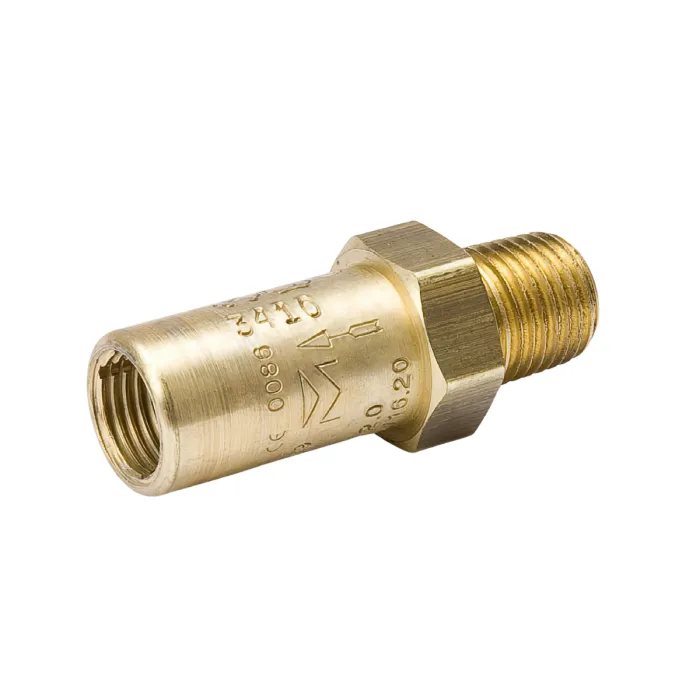

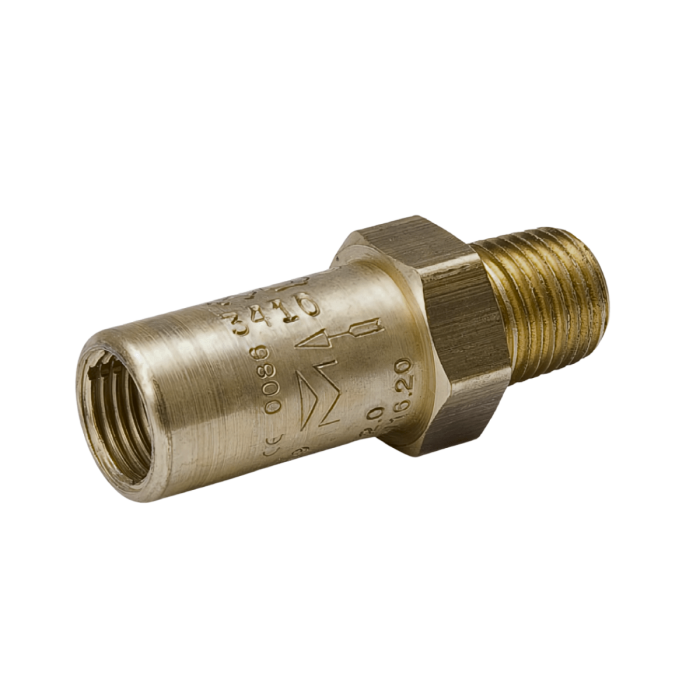

Atmospheric Pressure Relief Valve, 1/8 NPT, 600 PSI, 19.9 Discharge Capacity

Name: Atmospheric Pressure Relief Valve, 1/8 NPT, 600 PSI, 19.9 Discharge Capacity
Brand: Superior HVACR
SKU: 3000C-600
Price: 142.41 USD
Availability: InStock

SKU

3000C-600

Atmospheric Pressure Relief Valve, Superior HVACR Products, 1/8 NPT, 600 PSI, Body Construction: Brass, Seat Material: 100 % Teflon, Spring Material: stainless steel, Minimum Temperature: -40 degrees F, Maximum Temperature: 325 degrees F, Discharge Capacity: 19.9

Download Technical Sheet

Product Information

Atmospheric (No External Connection) Pressure Relief Valve, Superior HVACR Products, Minimum setting: 150 PSIG, Body Construction: Brass, Seat Material: 100 % Teflon, Spring Material: stainless steel, Minimum Temperature: -40 degrees F, Maximum Temperature: 325 degrees F, Reseat: by 80% of set pressure, Discharge Capacity: 19.9
