Superior HVACR

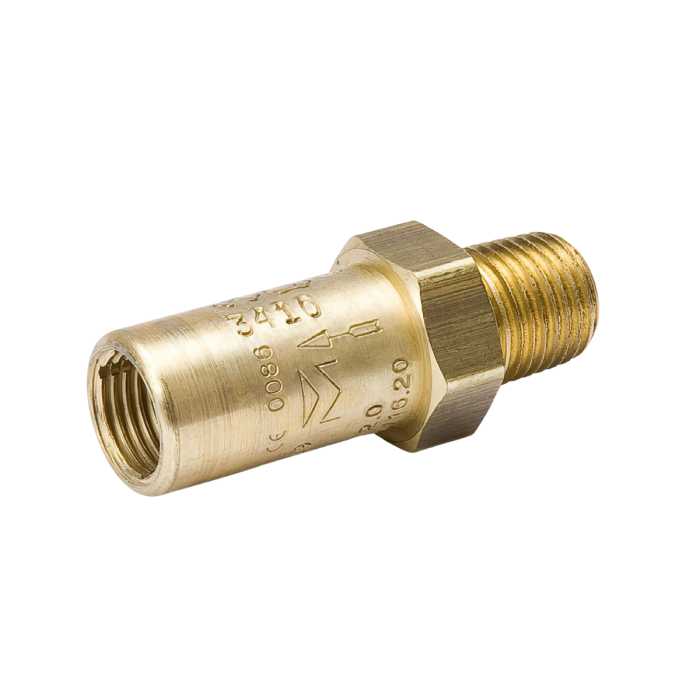

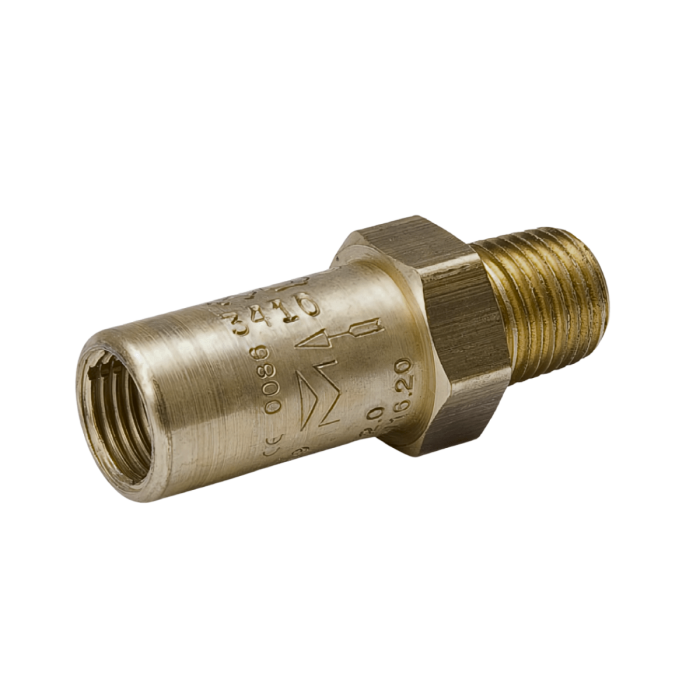

Atmospheric Pressure Relief Valve, 1/4 NPT, 750 PSI, Discharge Capacity: 24.9

Name: Atmospheric Pressure Relief Valve, 1/4 NPT, 750 PSI, Discharge Capacity: 24.9
Brand: Superior HVACR
SKU: 3001C-750
Price: 140.31 USD
Availability: InStock

SKU

3001C-750

Atmospheric Pressure Relief Valve, Superior HVACR Products, 1/4 NPT, 750 PSI, Body Construction: Brass, Seat Material: 100 % PTFE, Spring Material: stainless steel, Minimum Temperature: -40 degrees F, Maximum Temperature: 325 degrees F, Discharge Capacity: 24.9

Download Technical Sheet

Product Information

Atmospheric (No External Connection) Pressure Relief Valve, Superior HVACR Products, Minimum setting: 150 PSIG, Body Construction: Brass, Seat Material: 100 % PTFE, Spring Material: stainless steel, Minimum Temperature: -40 degrees F, Maximum Temperature: 325 degrees F, Reseat: by 80% of set pressure, Discharge Capacity: 24.9
