Angled Pressure Relief Valves, 1/2 NPT x 5/8 SAE, 235 PSI, Discharge Capacity 16.1

Skip to the end of the images gallery

Note: Image may not exactly match SKU and is only for representation.

Skip to the beginning of the images gallery

Superior HVACR

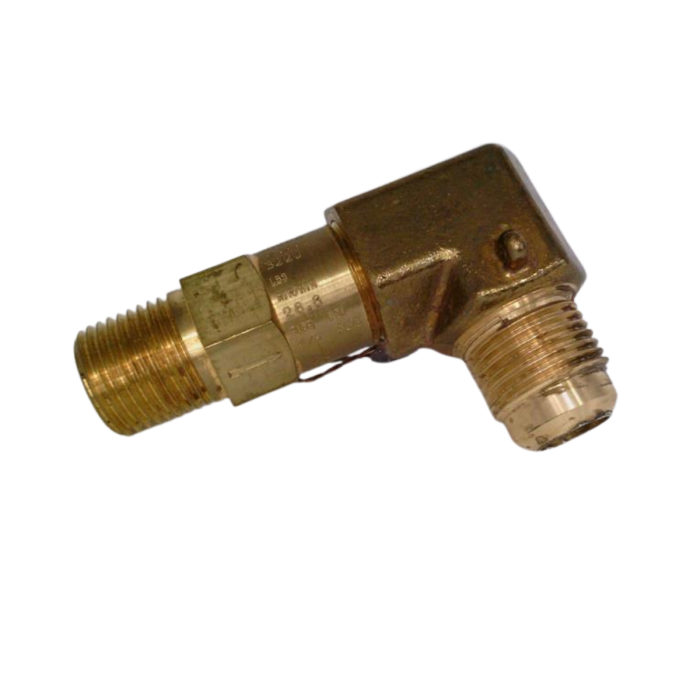

Angled Pressure Relief Valves, 1/2 NPT x 5/8 SAE, 235 PSI, Discharge Capacity 16.1

Name: Angled Pressure Relief Valves, 1/2 NPT x 5/8 SAE, 235 PSI, Discharge Capacity 16.1
Brand: Superior HVACR
SKU: 3220-235
Price: 161.45 USD
Availability: InStock

SKU

3220-235

Angled Pressure Relief Valve, 1/2 NPT x 5/8 SAE, 235 PSI, Body Construction: Brass, Seat Material: 100 % PTFE, Spring Material: stainless steel, Minimum Temperature: -40 degrees F, Maximum Temperature: 325 degrees F

Download Technical Sheet

Product Information

Pressure Relief Valve, Superior HVACR Products, Minimum setting: 150 PSIG, Body Construction: Brass, Seat Material: 100 % PTFE, Spring Material: stainless steel, Minimum Temperature: -40 degrees F, Maximum Temperature: 325 degrees F, Reseat: by 80% of set pressure
