Sherwood Residual Pressure Valve for Carbon Dioxide (CO2), CGA 320 (GRPV32051-28LX)

Name: Sherwood Residual Pressure Valve for Carbon Dioxide (CO2), CGA 320 (GRPV32051-28LX)
Brand: Sherwood
SKU: GSRPV320R51-28LX
Price: 110.49 USD
Availability: InStock

SKU

GSRPV320R51-28LX

$110.49

SHERWOOD CGA 320 CARBON DIOXIDE (CO2), 1.125 UNF INLET VALVE

Download Technical Sheet

Product Information

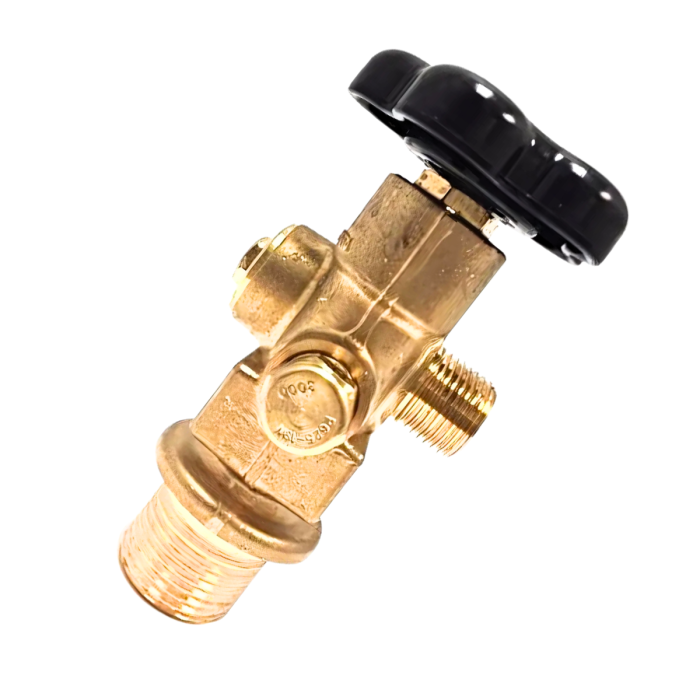

BRASS CYLINDER VALVE MADE BY SHERWOOD VALVE IN USA. THIS VALVE HAS A 1.125" - 12 UNF STRAIGHT THREAD INLET AND A CGA 320 OUTLET FOR CARBON DIOXIDE SERVICE. THE PRESSURE RELIEF DEVICE (SAFETY RELIEF) IS TYPE CG-1 AND SET AT 3000 PSI. THE HAND WHEEL IS LEXAN. THIS VALVE IS PRIMARILY USED IN ALUMINUM CYLINDERS AS WELL AS MANIFOLDS FOR BEVERAGE OR INDUSTRIAL APPLICATIONS. PLEASE DOWNLOAD OUR TECH SHEET FOR DETAILS REGARDING MATERIALS, REPLACEMENT PARTS, ETC. NEW PART NUMBER FOR GRPV32051-28LX
