RegO

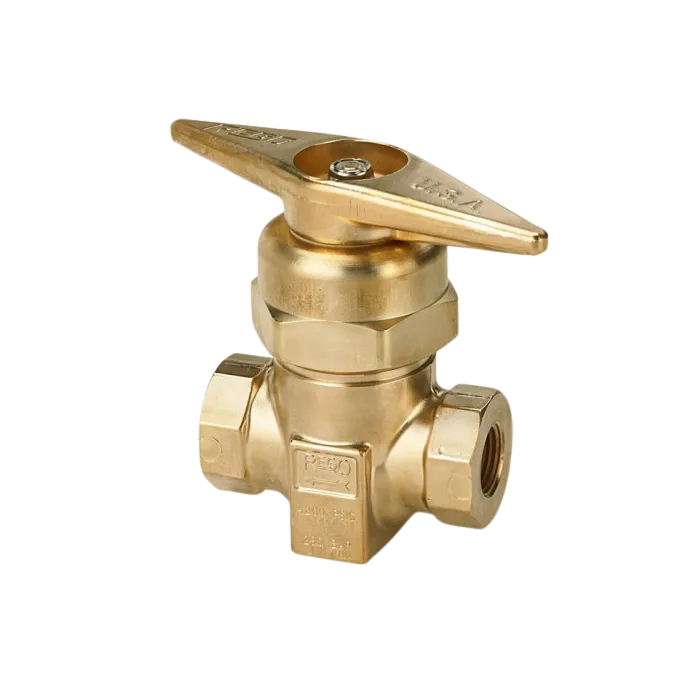

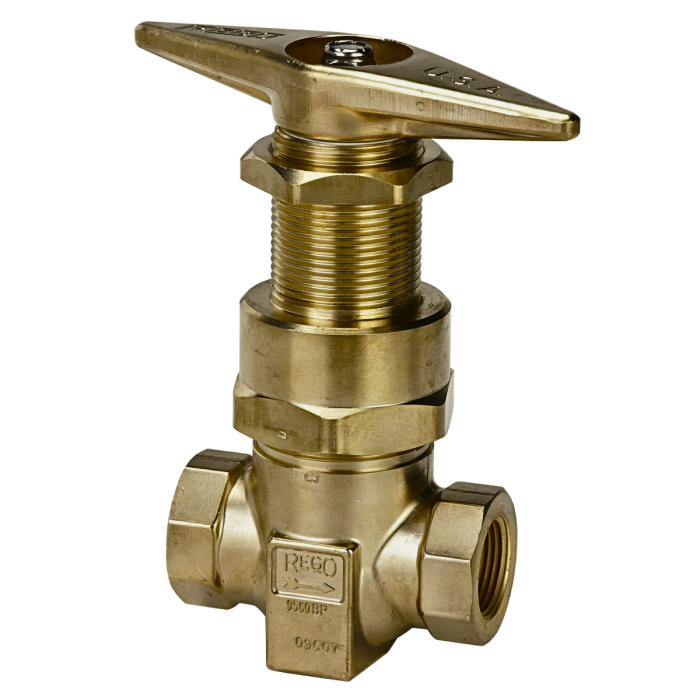

High Pressure Gas Master Valve + Copper Seat Disc + Panel Mount HP9561CRP

Name: High Pressure Gas Master Valve + Copper Seat Disc + Panel Mount HP9561CRP
Brand: RegO
SKU: HP9561CRP
Price: 590.69 USD
Availability: InStock

SKU

HP9561CRP

1-11-1/2 NPS R.H. Male x R.H. Female Swivel outlet, High Pressure Shut-Off Valves with Copper/Monel Seat High Pressure Gas Master Valve - HP9561CRP

Download Technical Sheet

Product Information

Rego HP9560 Series High Pressure brass valves are used for cylinder filling panels, tube trailers, and high pressure manifolds and piping systems. The HP9560 Series exhibits a very low operating torque under pressure for ease of manual operation. Features: 5600 PSIG maximum working pressure, Non-rising stem design with o-ring seal for durable service, large brass handwheel for wasy of operation under pressure, cleaned for oxygen use per CGA G-4.1. For more information, please download the tech sheet. High Pressure Gas Master Valve - HP9561CRP
