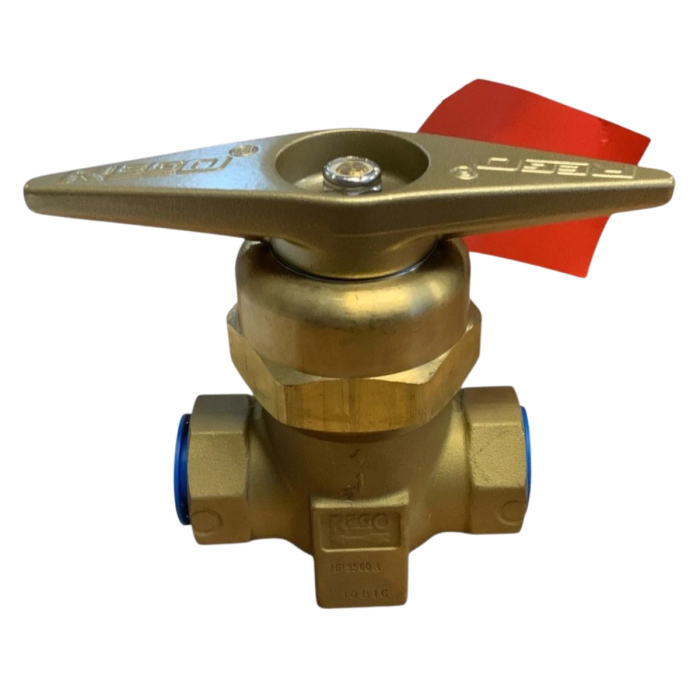

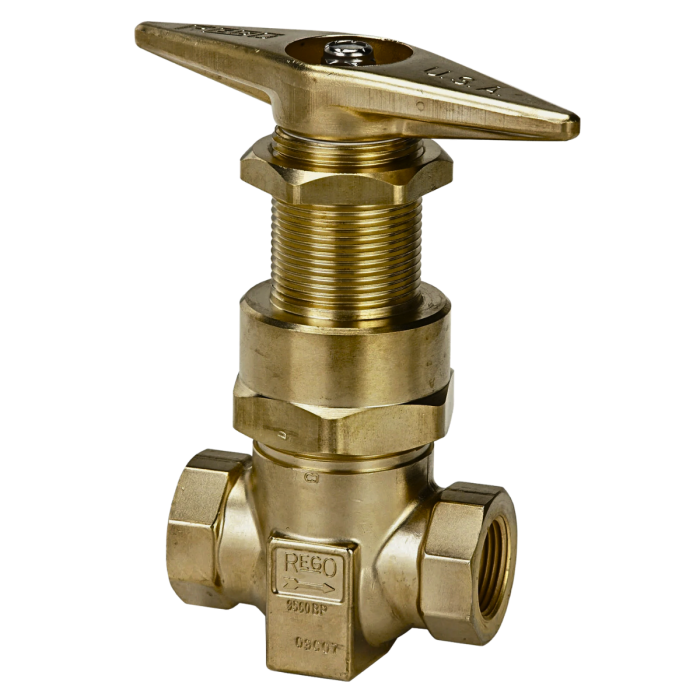

Note: Image may not exactly match SKU and is only for representation.

Skip to the beginning of the images gallery

RegO

High Pressure Gas Master Valve + Panel Mount HP9560ASEP

Name: High Pressure Gas Master Valve + Panel Mount HP9560ASEP
Brand: RegO
SKU: HP9560ASEP
Price: 392.51 USD
Availability: InStock

SKU

HP9560ASEP

.843 - .847 x .843 - .847 Braze Socket, High Pressure Shut-Off Valves with CTFE Seat High Pressure Gas Master Valve + Panel Mount HP9560ASEP

Download Technical Sheet

Product Information

Rego HP9560 Series High Pressure brass valves are used for cylinder filling panels, tube trailers, and high pressure manifolds and piping systems. The HP9560 Series exhibits a very low operating torque under pressure for ease of manual operation. Features: 5600 PSIG maximum working pressure, Non-rising stem design with o-ring seal for durable service, large brass handwheel for wasy of operation under pressure, cleaned for oxygen use per CGA G-4.1. For more information, please download the tech sheet. High Pressure Gas Master Valve + Panel Mount HP9560ASEP
