Nitrous Oxide Cylinder Valve, CGA 910, MRI Compatible KVMB91051-32

In stock

Sherwood non-magnetic CGA 910 nitrous oxide valve, .750-16 UNF-2A inlet thread with 3360 PSI CG-1 PRD. MRI compatible (magnetic resonance environment) with TS markings.

SKU

KVMC91051-32

Categories:

Valves

Details
Technical Sheets

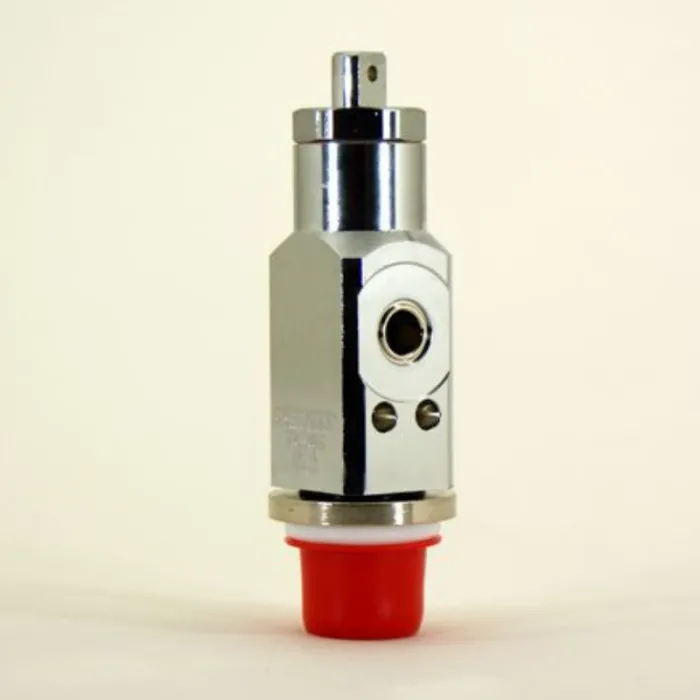

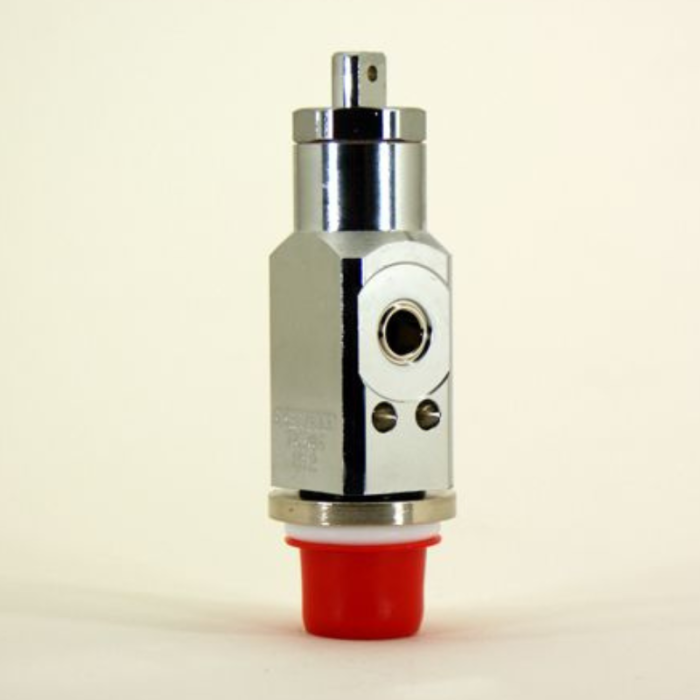

Chrome plated brass non-magnetic cylinder post valve. Made by Sherwood Valve in the USA. This valve has a .750-16 UNF-2A inlet thread and a CGA 910 pin index outlet. The pressure relief device is CG-1 and is set at 3360 PSI. This valve is primarily used where non-magnetic valves are necessary - MRI applications. This valve is stamped to meet ASTM standard F2503-05 markings and meets level 3 tesla requirements. The valve is used in aluminum cylinders, primarily in the medical and homecare health fields. Please download our tech sheet for details regarding materials, replacement parts, and more.

Download Technical Sheet
