KVAB87054-32RTG Oxygen Cylinder Valve - CGA 870, WITH PTFE Inlet O-Ring and Toggle Lever

Skip to the end of the images gallery

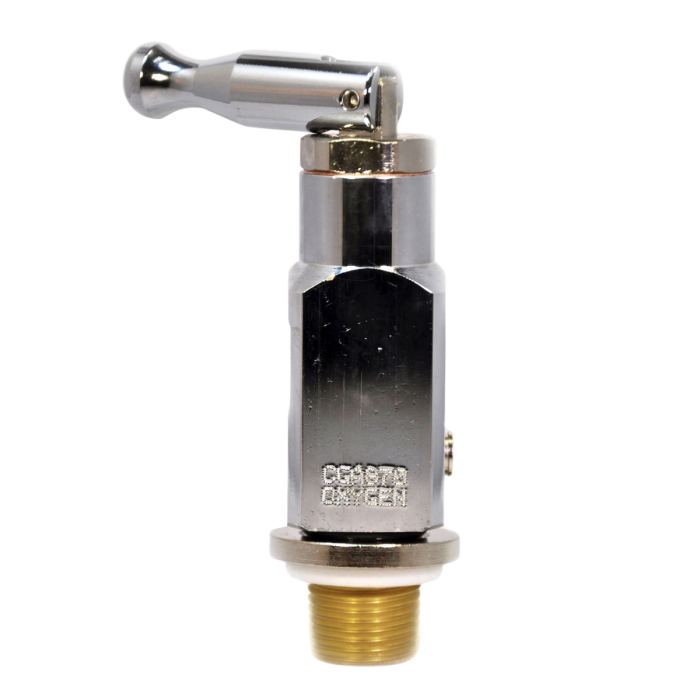

Note: Image may not exactly match SKU and is only for representation.

Skip to the beginning of the images gallery

Sherwood

KVAB87054-32RTG Oxygen Cylinder Valve - CGA 870, WITH PTFE Inlet O-Ring and Toggle Lever

Name: KVAB87054-32RTG Oxygen Cylinder Valve - CGA 870, WITH PTFE Inlet O-Ring and Toggle Lever
Brand: Sherwood
SKU: KVAC87054-32RTG
Price: 51.4 USD
Availability: InStock

SKU

KVAC87054-32RTG

SHERWOOD CGA 870 OXYGEN VALVE, .750-16U UNF-2A INLET THREAD WITH PTFE INLET O-RING INSTALLED AND AN ALUMINUM TOGGLE LEVER, 3360 PSI CG-4 PRD.

Download Technical Sheet

Product Information

CHROME PLATED BRASS CYLINDER "POST" VALVE, MADE BY SHERWOOD VALVE IN THE USA. THIS VALVE HAS A .750-16 UNF-2A INLET THREAD WITH PTFE O-RING INSTALLED AND A CGA 870 PIN INDEX OUTLET, WITH RUGGED DIECAST ALUMINUM TOGGLE LEVER. THE PRESSURE RELIEF DEVICE IS A CG-4 AND IS SET AT 3360 PSI. THIS VALVE IS PRIMARILY USED IN ALUMINUM CYLINDERS IN THE MEDICAL AND HOMECARE HEALTH FIELDS. PLEASE DOWNLOAD OUR TECH SHEET FOR DETAILS REGARDING MATERIALS, REPLACEMENT PARTS, ETC.
