KVAB87054-32GTG OXYGEN CYLINDER VALVE - CGA 870, GAUGE PORT, TOGGLE LEVER

Name: KVAB87054-32GTG OXYGEN CYLINDER VALVE - CGA 870, GAUGE PORT, TOGGLE LEVER
Brand: Sherwood
SKU: KVAC87054-32GTG
Availability: InStock

SKU

KVAC87054-32GTG

SHERWOOD CGA 870 OXYGEN VALVE, .750-16 UNF-2A INLET THREAD, 1/8"-27 NPT GAUGE PORT, WITH 3360 PSI CG-4 PRD AND RUGGED DIECAST ALUMINUM TOGGLE LEVER

Download Technical Sheet

Product Information

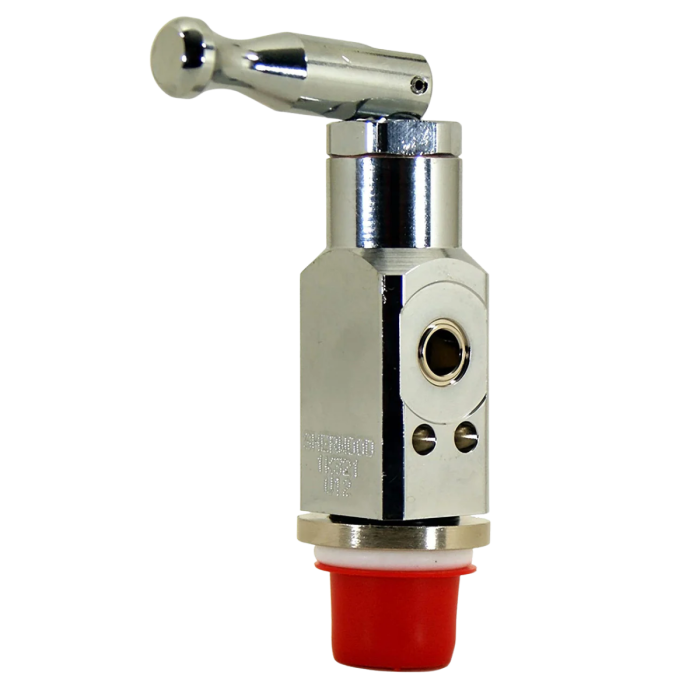

CHROME PLATED BRASS CYLINDER "POST" VALVE, MADE BY SHERWOOD VALVE IN THE USA. THIS VALVE HAS A .750-16 UNF-2A INLET THREAD AND A CGA 870 PIN INDEX OUTLET, WITH A 1/8"-27 NPT GAUGE PORT AND A RUGGED DIECAST ALUMINUM TOGGLE LEVER. THE PRESSURE RELIEF DEVICE IS A CG-4 AND IS SET AT 3360 PSI. THIS VALVE IS PRIMARILY USED IN ALUMINUM CYLINDERS IN THE MEDICAL AND HOMECARE HEALTH FIELDS. PLEASE DOWNLOAD OUR TECH SHEET FOR DETAILS REGARDING MATERIALS, REPLACEMENT PARTS, ETC.
