Sherwood KVAB87054-32R CGA 870 Oxygen Cylinder Valve, PTFE Inlet O-Ring Installed

Name: Sherwood KVAB87054-32R CGA 870 Oxygen Cylinder Valve, PTFE Inlet O-Ring Installed
Brand: Sherwood
SKU: KVAC87054-32R
Price: 54.64 USD
Availability: InStock

SKU

KVAC87054-32R

$54.64

SHERWOOD CGA 870 OXYGEN VALVE, .750-16 UNF-2A INLET THREAD WITH PTFE O-RING INSTALLED, 3360 PSI CG-4 PRD.

Download Technical Sheet

Product Information

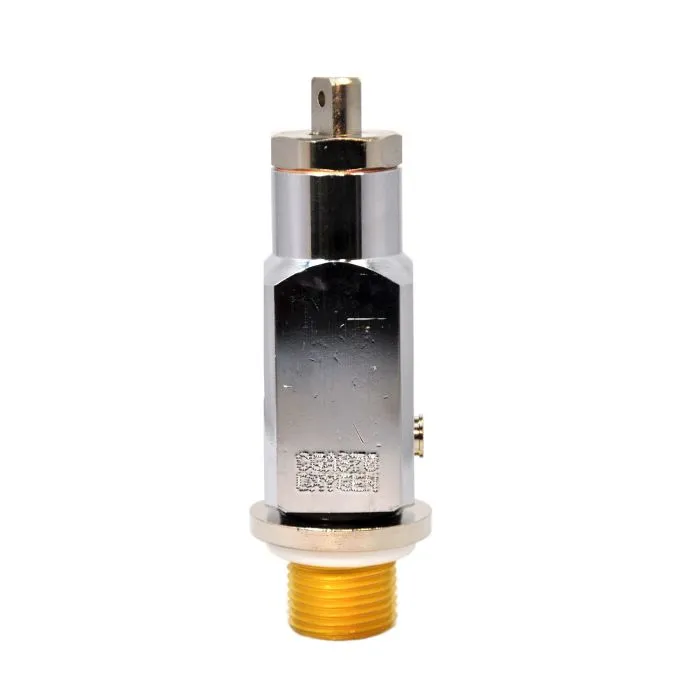

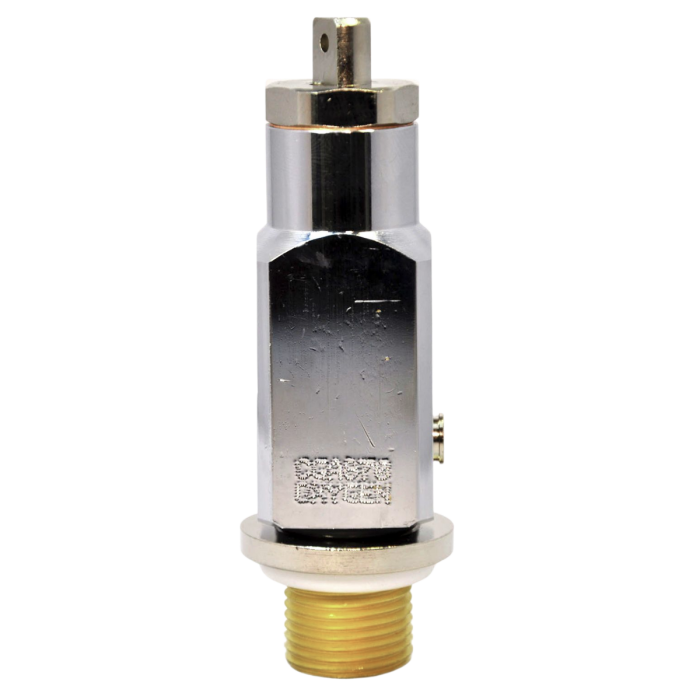

CHROME PLATED BRASS CYLINDER "POST" VALVE, MADE BY SHERWOOD VALVE IN THE USA. THIS VALVE HAS A .750-16 UNF-2A INLET THREAD WITH PTFE O-RING INSTALLED AND A CGA 870 PIN INDEX OUTLET. THE PRESSURE RELIEF DEVICE IS A CG-4 AND IS SET AT 3360 PSI. THIS VALVE IS PRIMARILY USED IN ALUMINUM CYLINDERS IN THE MEDICAL AND HOMECARE HEALTH FIELDS. PLEASE DOWNLOAD OUR TECH SHEET FOR DETAILS REGARDING MATERIALS, REPLACEMENT PARTS, ETC.
