Oxygen Cylinder Valve, CGA 870, MRI Compatible KVMB87054-32R, O-Ring Included

Name: Oxygen Cylinder Valve, CGA 870, MRI Compatible KVMB87054-32R, O-Ring Included
Brand: Sherwood
SKU: KVMC87054-32R
Price: 69.25 USD
Availability: InStock

SKU

KVMC87054-32R

Sherwood non-magnetic CGA 870 oxygen valve, .750-16 UNF-2A inlet thread with 3360 PSI CG-4 PRD. Shipped with PTFE o-ring installed. MRI compatible (magnetic resonance environment) with TS markings.

Download Technical Sheet

Product Information

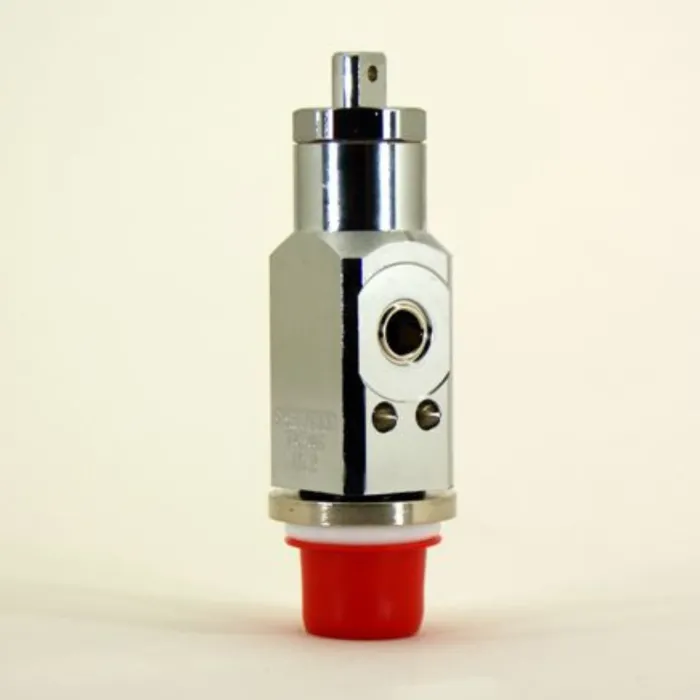

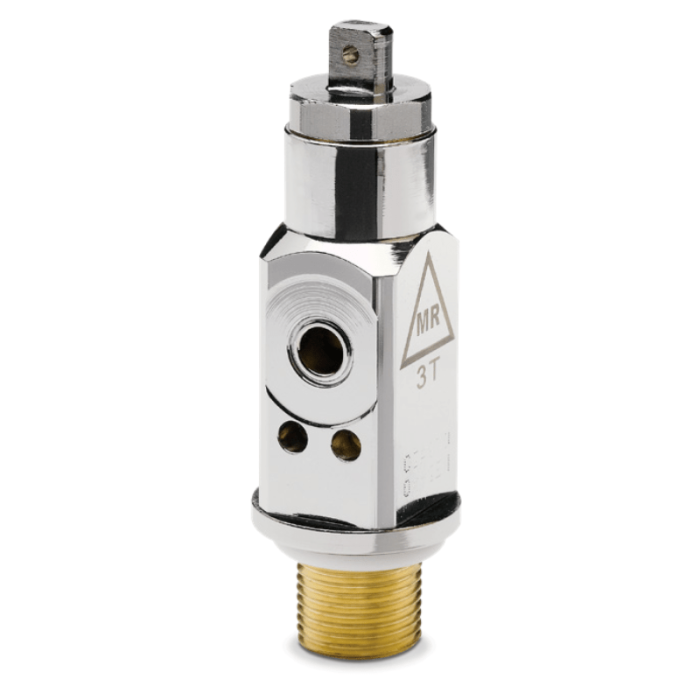

Chrome plated brass non-magnetic cylinder post valve. Made by Sherwood Valve in the USA. This valve has a .750-16 UNF-2A inlet thread and a CGA 970 pin index outlet. The pressure relief device is CG-4 and is set at 3360 PSI. This valve is primarily used where non-magnetic valves are necessary - MRI applications. This valve is stamped to meet ASTM standard F2503-05 markings and meets level 3 tesla requirements. The valve is used in aluminum cylinders, primarily in the medical and homecare health fields. Shipped with PTFE o-ring installed. Please download our tech sheet for details regarding materials, replacement parts, and more.
