Sherwood

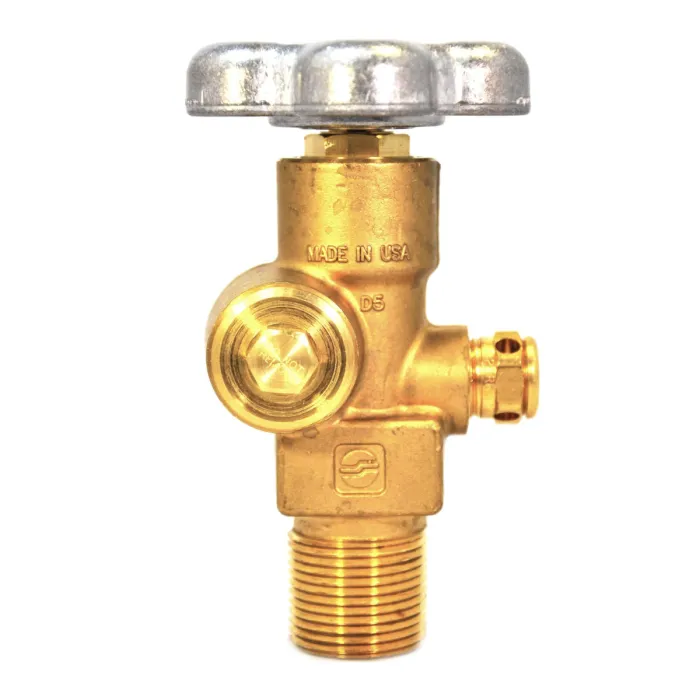

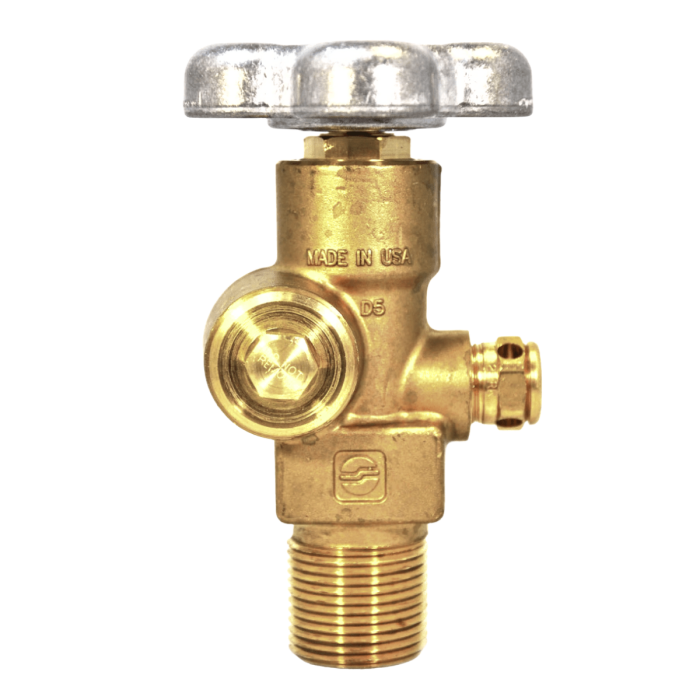

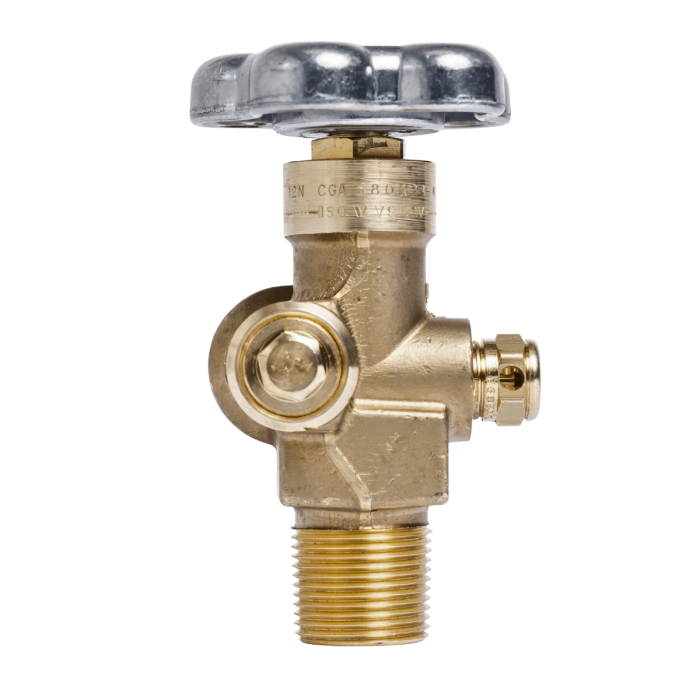

RESIDUAL PRESSURE VALVE FOR SULFUR HEXAFLUORIDE - CGA 590 - GRPV590R61-38

Name: RESIDUAL PRESSURE VALVE FOR SULFUR HEXAFLUORIDE - CGA 590 - GRPV590R61-38
Brand: Sherwood
SKU: GSRPV590R61-38
Price: 107.2 USD
Availability: InStock

SKU

GSRPV590R61-38

SHERWOOD RESIDUAL PRESSURE VALVE, CGA 590 SULFUR HEXAFLUORIDE, 3/4" CYLINDER VALVE WITH 4000 PSI CG-1 PRD

Download Technical Sheet

Product Information

BRASS RESIDUAL PRESSURE VALVE MADE BY SHERWOOD VALVE IN USA. THIS VALVE HAS A 3/4"-14 NGT INLET AND A CGA 590 OUTLET FOR SULFUR HEXAFLUORIDE SERVICE. THE PRESSURE RELIEF DEVICE (SAFETY RELIEF) IS TYPE CG-1 AND SET AT 4000 PSI. THE HAND WHEEL IS ALLOY. THIS VALVE IS PRIMARILY USED IN STEEL CYLINDERS. PLEASE DOWNLOAD OUR TECH SHEET FOR DETAILS REGARDING MATERIALS, REPLACEMENT PARTS, ETC. NEW PART NUMBER FOR GRPV590R61-38
