Sherwood Residual Pressure Valve for Sulfur Hexafluoride, CGA 590 (GRPV590R61-35)

Skip to the end of the images gallery

Note: Image may not exactly match SKU and is only for representation.

Skip to the beginning of the images gallery

Sherwood

Sherwood Residual Pressure Valve for Sulfur Hexafluoride, CGA 590 (GRPV590R61-35)

Name: Sherwood Residual Pressure Valve for Sulfur Hexafluoride, CGA 590 (GRPV590R61-35)
Brand: Sherwood
SKU: GSRPV590R61-35
Availability: InStock

SKU

GSRPV590R61-35

SHERWOOD RESIDUAL PRESSURE VALVE, CGA 590 SULFUR HEXAFLUORIDE, 3/4" CYLINDER VALVE WITH 3775 PSI CG-1 PRD

Download Technical Sheet

Product Information

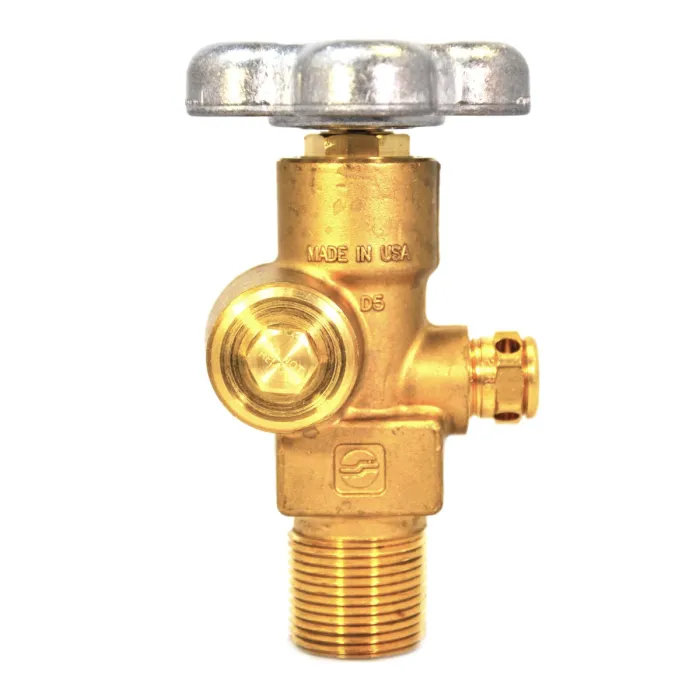

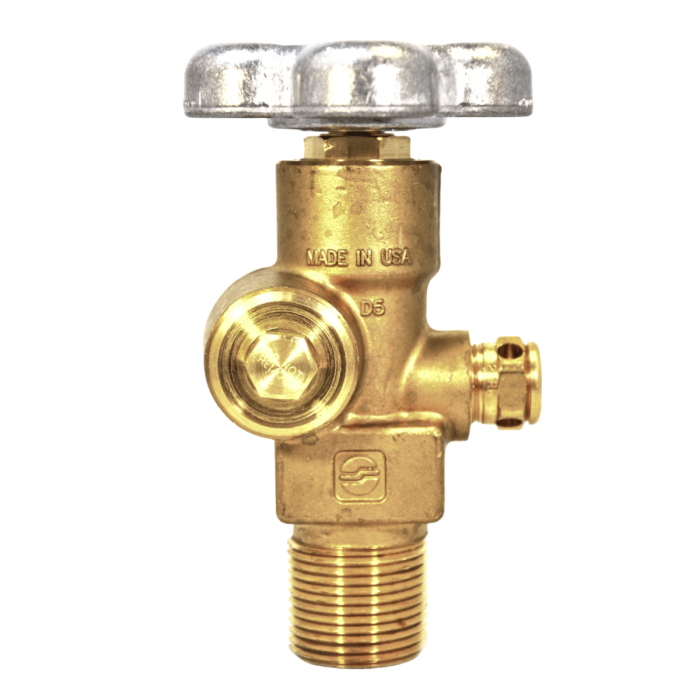

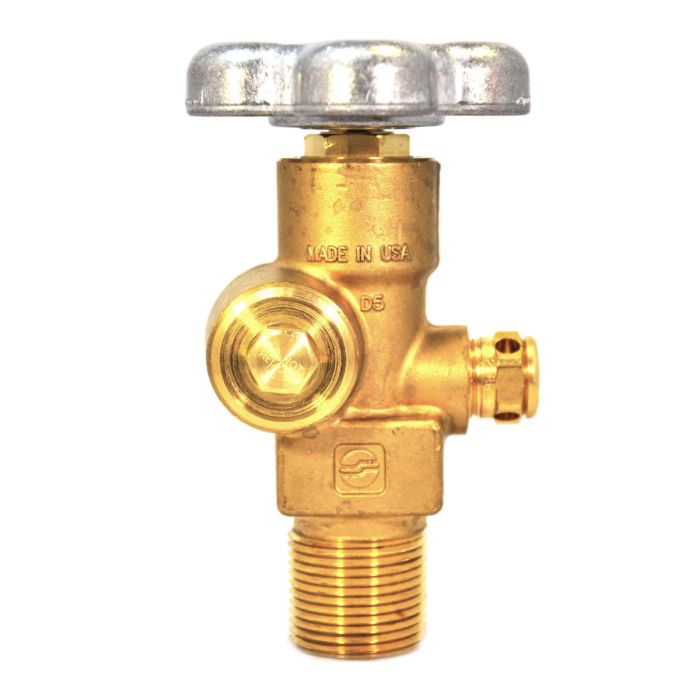

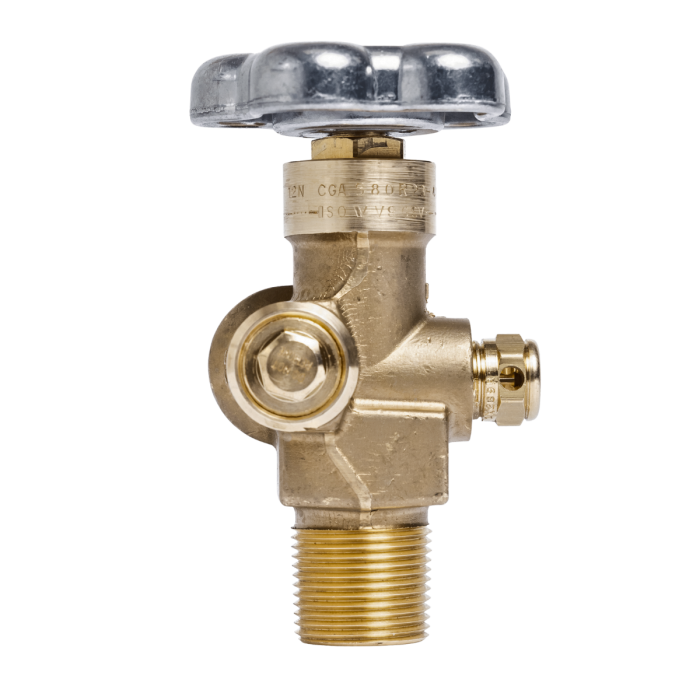

BRASS RESIDUAL PRESSURE VALVE MADE BY SHERWOOD VALVE IN USA. THIS VALVE HAS A 3/4"-14 NGT INLET AND A CGA 590 OUTLET FOR SULFUR HEXAFLUORIDE SERVICE. THE PRESSURE RELIEF DEVICE (SAFETY RELIEF) IS TYPE CG-1 AND SET AT 3775 PSI. THE HAND WHEEL IS ALLOY. THIS VALVE IS PRIMARILY USED IN STEEL CYLINDERS. PLEASE DOWNLOAD OUR TECH SHEET FOR DETAILS REGARDING MATERIALS, REPLACEMENT PARTS, ETC. NEW PART NUMBER FOR GRPV590R61-35
