Sherwood

OXYGEN CYLINDER VALVE - CGA 540 CHROME PLATED - GVA54061-28

Name: OXYGEN CYLINDER VALVE - CGA 540 CHROME PLATED - GVA54061-28
Brand: Sherwood
SKU: GSVA54061-28
Availability: InStock

SKU

GSVA54061-28

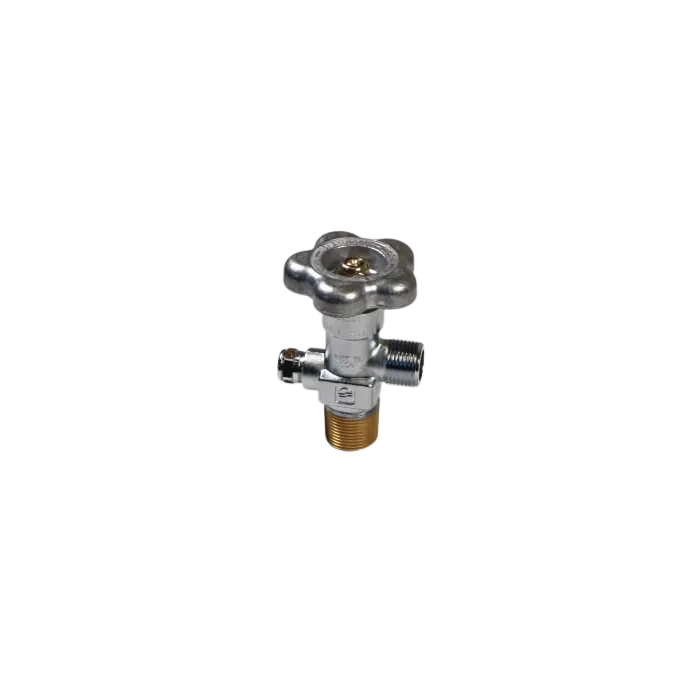

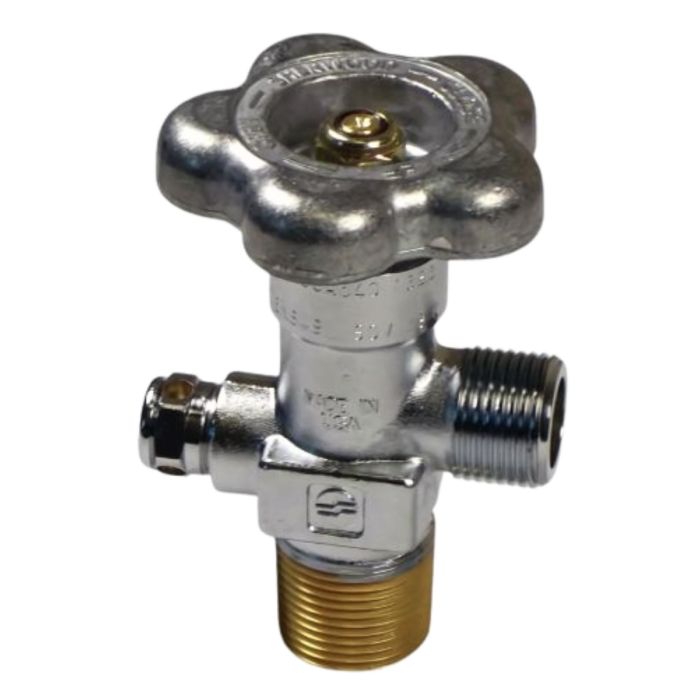

CHROME PLATED SHERWOOD CGA 540 ¾’’-14 NGT OXYGEN CYLINDER VALVE WITH 3000 PSI CG-1 PRD.

Download Technical Sheet

Product Information

CHROME PLATED BRASS CYLINDER VALVE MADE BY SHERWOOD VALVE IN USA. THIS VALVE HAS A ¾’’-14 NGT INLET AND A CGA 540 OUTLET FOR OXYGEN SERVICE. THE PRESSURE RELIEF DEVICE (SAFETY RELIEF) IS TYPE CG-1 AND SET AT 3000 PSI. THE HANDWHEEL IS ALLOY. THIS VALVE IS PRIMARILY USED IN STEEL CYLINDERS FOR MEDICAL OR INDUSTRIAL APPLICATIONS. PLEASE DOWNLOAD OUR TECH SHEET FOR DETAILS REGARDING MATERIALS, REPLACEMENT PARTS, ETC. NEW PART NUMBER FOR GVA54061-28
