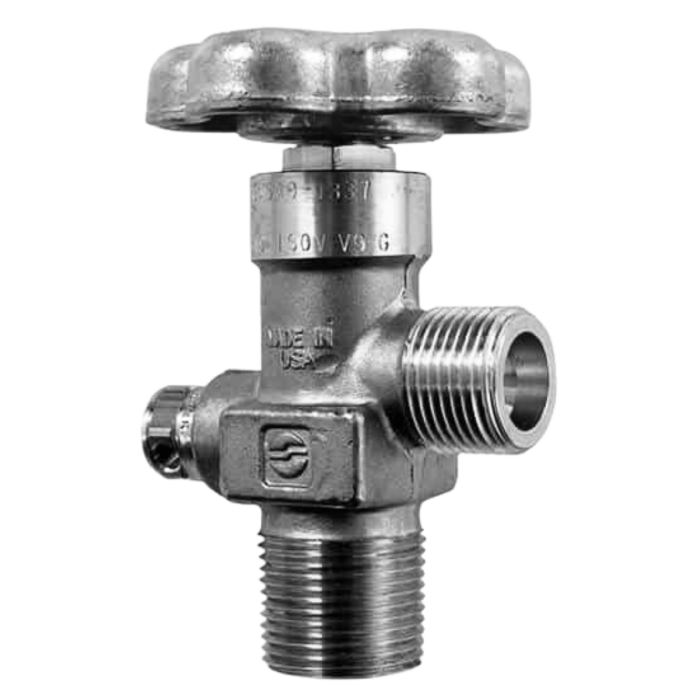

Note: Image may not exactly match SKU and is only for representation.

Skip to the beginning of the images gallery

Sherwood

OXYGEN CYLINDER VALVE - CGA 540 CHROME PLATED - GVA54051-32LX

Name: OXYGEN CYLINDER VALVE - CGA 540 CHROME PLATED - GVA54051-32LX
Brand: Sherwood
SKU: GSVA54051-32LX
Availability: InStock

SKU

GSVA54051-32LX

CHROME PLATED SHERWOOD CGA 540 1.125-12UNF OXYGEN CYLINDER VALVE WITH 3360 PSI CG-1 PRD. WITH LEXAN HANDWHEEL

Download Technical Sheet

Product Information

CHROME PLATED CYLINDER VALVE MADE BY SHERWOOD VALVE IN USA. THIS VALVE HAS A 1.125-12UNF INLET AND A CGA 540 OUTLET FOR OXYGEN SERVICE. THE PRESSURE RELIEF DEVICE (SAFETY RELIEF) IS TYPE CG-1 AND SET AT 3360 PSI. THE HANDWHEEL IS LEXAN. THIS VALVE IS PRIMARILY USED IN ALUMINUM CYLINDERS FOR MEDICAL OR INDUSTRIAL APPLICATIONS. PLEASE DOWNLOAD OUR TECH SHEET FOR DETAILS REGARDING MATERIALS, REPLACEMENT PARTS, ETC. NEW PART NUMBER FOR GVA54051-32LX
