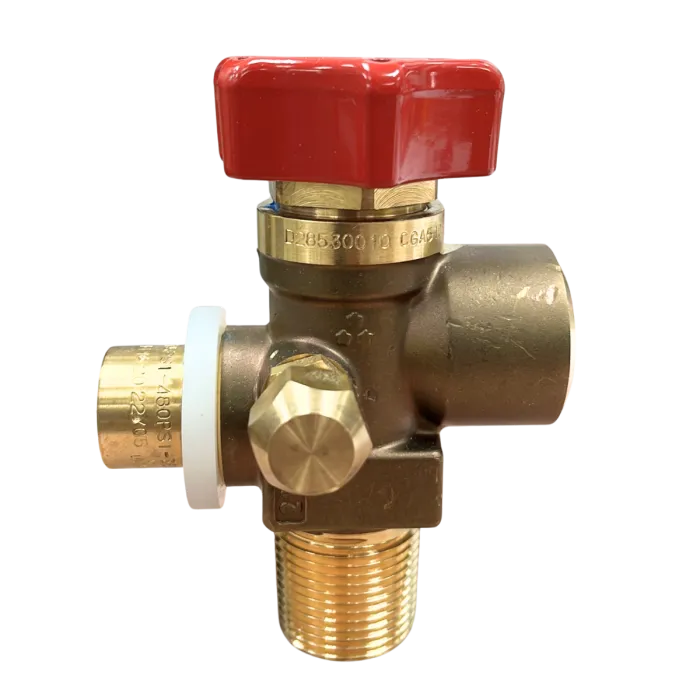

Low Pressure Brass Diaphragm Valve 1132E510-375 (NO Pressurizing Port)

The 1132 Series of low pressure brass diaphragm packless valves are designed for use in liquefied gas applications, including refrigerants and flammables. These valves are especially suited for propane, butane, fuel-gas applications and sterilant gas applications.

• Replaceable spring-loaded Type CG-7 safety for use on liquefied gas cylinders have water capacities not exceeding 254 lbs
• PTFE seat insert and controlled stem travel assure positive shut-off and long wear-resistant service
• Two piece stem reduces wear and increases valve life
• Optional integrated valve charging port with 1/4" SAE fl are connection
• Liquid and vapor withdrawal available
• Excess flow device available for liquid withdrawal option for propane and butane
• 50 mm handwheel designed for ease of operation and to reduce the risk of valve damage from over-torque

¾" NGT Inlet, CGA 510 Outlet, CG-7 PRD, 375 PRV Start to Discharge Pressure (PSI), PRV Flow Capacity (SCFM) 318^a, Diptube Tap 1⁄8" NPT

NO Pressurizing Port.
